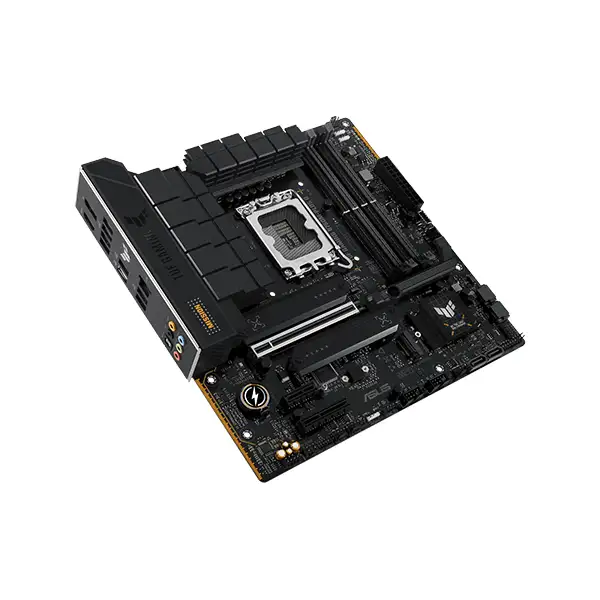

ASUS TUF GAMING B760M-PLUS II Intel LGA1700 mATX Gaming Motherboard

36%

ছাড়

~~৳35000~~ ৳22500

0.00/5 See Reviews

প্রোডাক্ট কোড : 20250309

Brand: Global Brand

- +

Chat or Call on WhatsApp

+8801792072585

ঢাকার ভিতরে ৯০ টাকা
ঢাকার বাহিরে ১৩৫ টাকা
Dhaka

Description
Reviews (0)

বিস্তারিত

Model	TUF GAMING B760M-PLUS II
CPU	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Refer to www.asus.com for CPU support list. Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel B760 Chipset
Memory	4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) ASUS Enhanced Memory Profile II (AEMP II) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort 1 x HDMI port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	Intel Core Processors (14th& 13th& 12th Gen) 1 x PCIe 5.0 x16 slot IntelB760 Chipset 1 x PCIe 4.0 x4 slot 1 x PCIe 3.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th& 13th& 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports Intel Rapid Storage Technology supportsSATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5Gb Ethernet TUF LANGuard
USB	Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 8 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 5 additional USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Rear optical S/PDIF out port Premium audio capacitors Dedicated audio PCB layers
Back Panel I/O Ports	1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 5 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Front Panel Audio header (F-AUDIO) 1 x20-3 pin System Panel header with chassis intrusion function 1 x Thunderbolt (USB4) header
Special Features	ASUS TUF PROTECTION DIGI+ VRM (- Digital power design with DrMOS) ESD Guards TUF LANGuard Overvoltage Protection SafeSlot Core+ Stainless-steel back I/O ASUS Q-Design M.2 Q-Latch PCIe Slot Q-Release Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution M.2 heatsinks VRM heatsink design ASUS EZ DIY CPU Socket lever protector ProCool Pre-mounted I/O shield SafeDIMM Aura Sync Addressable Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate AURA Creator AURA Sync Fan Xpert 2+ Power Saving Two-Way AI Noise Cancelation AI Suite 3 DIGI+ VRM PC CleanerTUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x M.2 rubber package 1 x TUF GAMING sticker 2 x Screw packages for M.2 SSD Documentation 1 x TUF certification card 1 x Quick start guide
Operating System	Windows 11, Windows 10 64-bit
Form Factor	micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Warranty	3 Years Replacement Warranty *(Terms and Conditions Applied)
